Size

Frame size
LG
Rider height
183cm

Frame size is the one thing photos can't tell you. If you're between sizes, message the seller for stack, reach and standover before you buy.

Technical specifications

These are the manufacturer's factory specifications for this model and year. Sellers often change wheels, finishing kit or drivetrain parts, so check the seller's declaration below for what's actually fitted.

Original price (£)
3625
Category
Electric Mountain
Year
2022
Brand
Marin
Model
Alpine Trail E1
Frame material
Aluminium
Groupset
105, Deore
Drivetrain
1 × 10
Brake type
Hydraulic Disc
Colour
Red
Condition
Good condition
Proof of ownership
No
Previous owners
I'm the original owner
Last service
6-12 months ago
Location
Luton

Description

Used FRAME
All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

FORK
Rock Shock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset

SHOCK
Rock Shock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb

RIMS
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR
Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body

HUB FRONT
Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

SPOKES
14g Black Stainless Steel

TIRES
Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, Double Down, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8, 3C Maxx Terra, EXO+, Tubeless Compatible

DERAILLEUR REAR
Shimano Deore 5100 Direct Attachment, 10-Speed

DERAILLEUR FRONT
-

SHIFT LEVER
Shimano Deore M4100-R, I-Spec EV, 10-Speed

CRANKSET
Marin Forged Alloy 165mm Length, Narrow Wide 38T Chainring, e13 Plus Chain guide, Aluminum Plate

MOTOR
Shimano STEPS E7000, 250W, 60Nm

CHAIN
KMC X-10E, E-Bike Specific, Silver

CASSETTE
Shimano Deore M4100-10 10-speed 11-46T

BRAKES FRONT
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

BRAKES REAR
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor w/ Speed Sensor

BRAKE LEVERS
Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

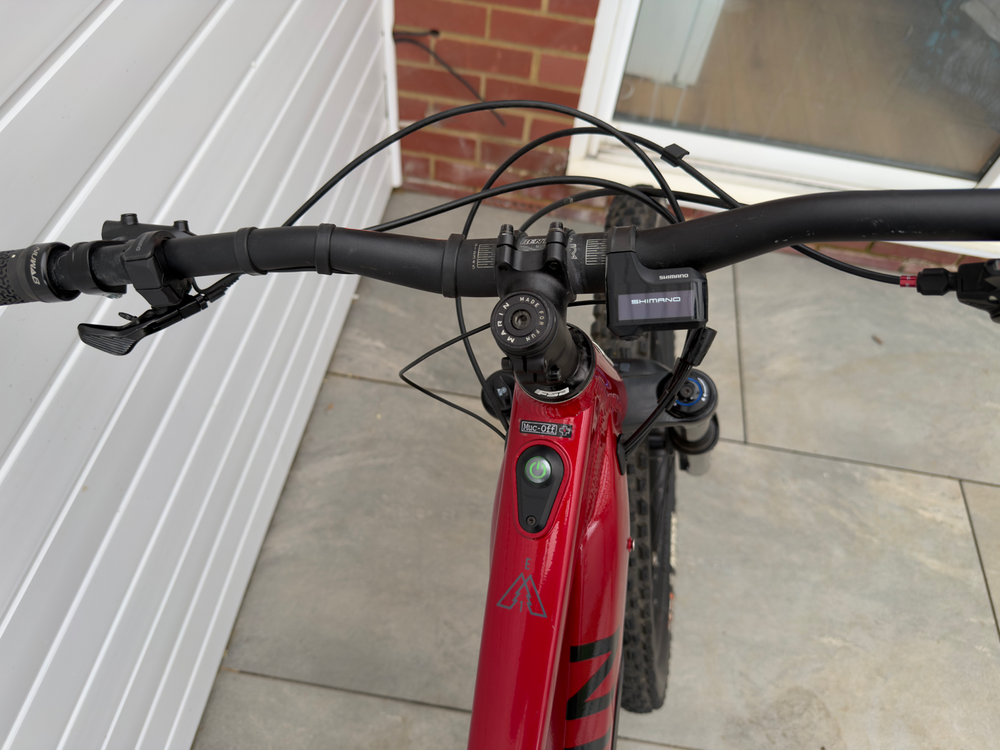

HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM
Marin 3D Forged Alloy, 35mm

GRIPS
Marin Single Clamp Locking

HEADSET
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

SADDLE
Marin E-MTB Saddle

PEDALS
Marin MTB Plastic

BATTERY
BT-8035, Internal 504Wh

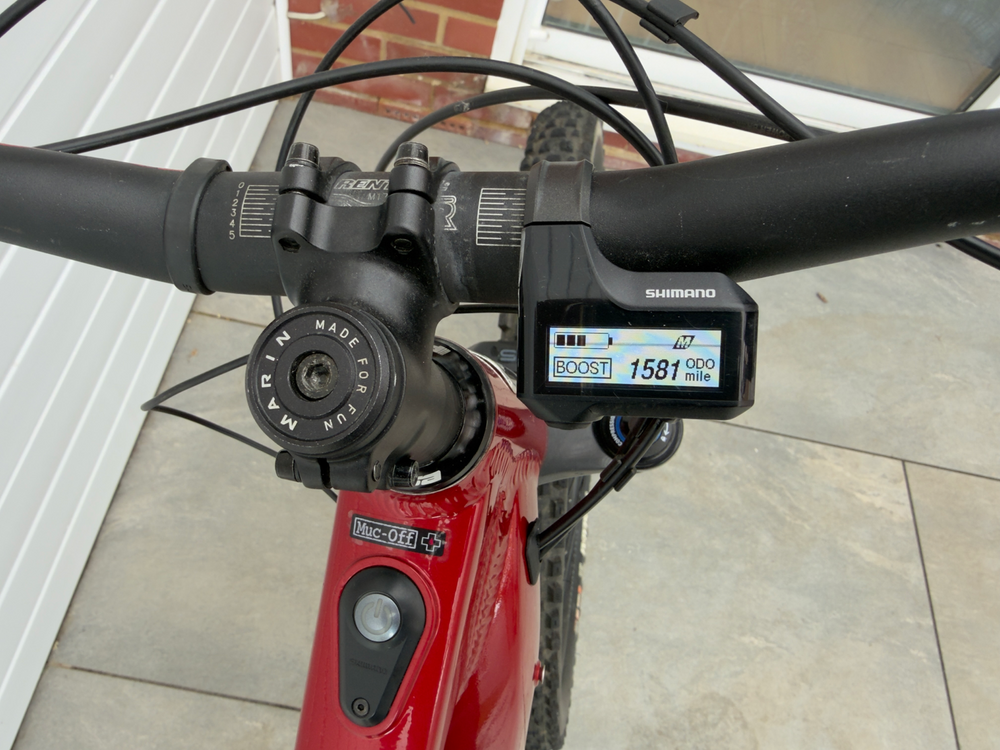

DISPLAY
SC-E7000 Display

SWITCH
SW-E7000 Left Hand Switch for Assist Mode Change

EXTRAS
Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle
Seller Private · Luton
Condition Good condition
Delivery Insured courier · £89 · 4–7 days

Questions reach the seller via our secure chat platform; your details stay private, and payment always runs through MyNextBike.

Private Seller Used
Marin · 2022 · Electric Mountain

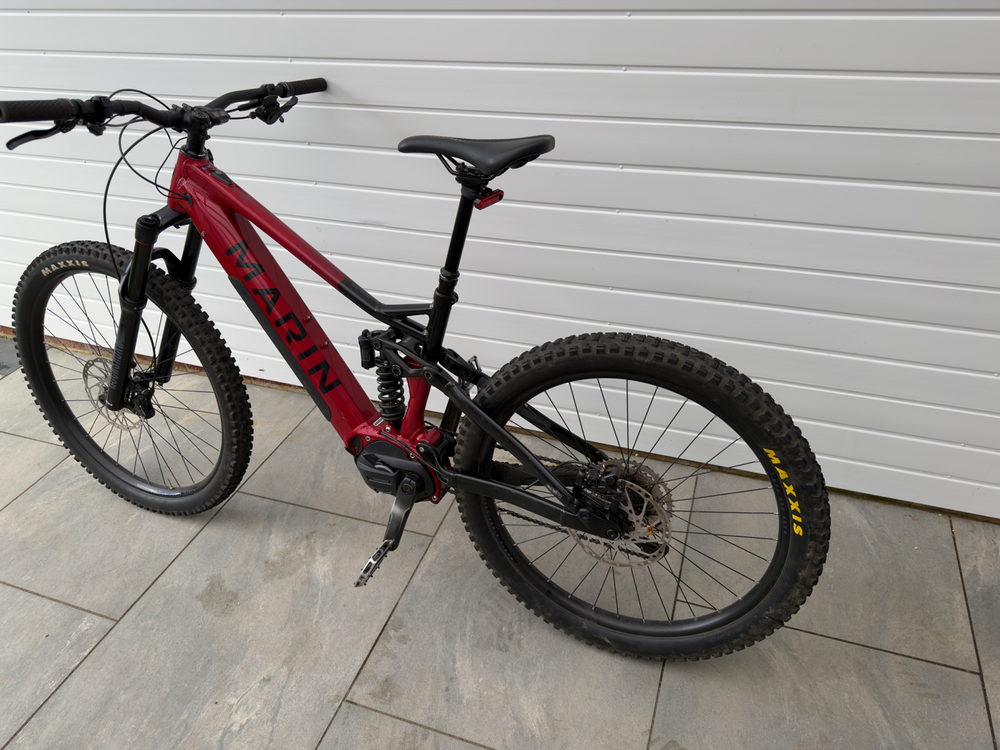

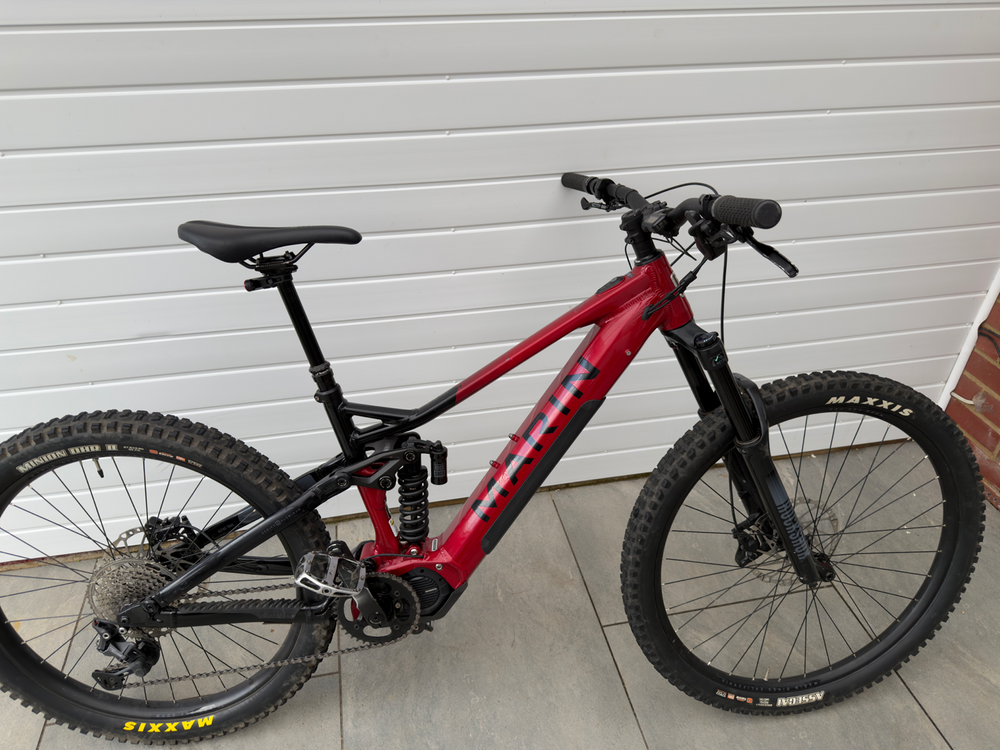

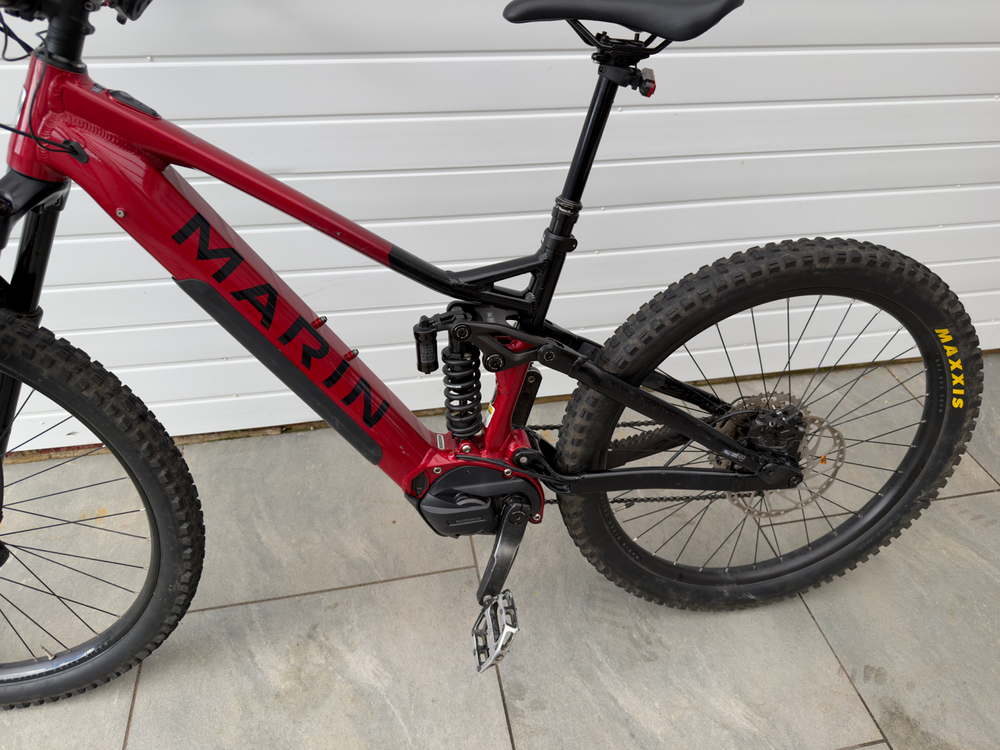

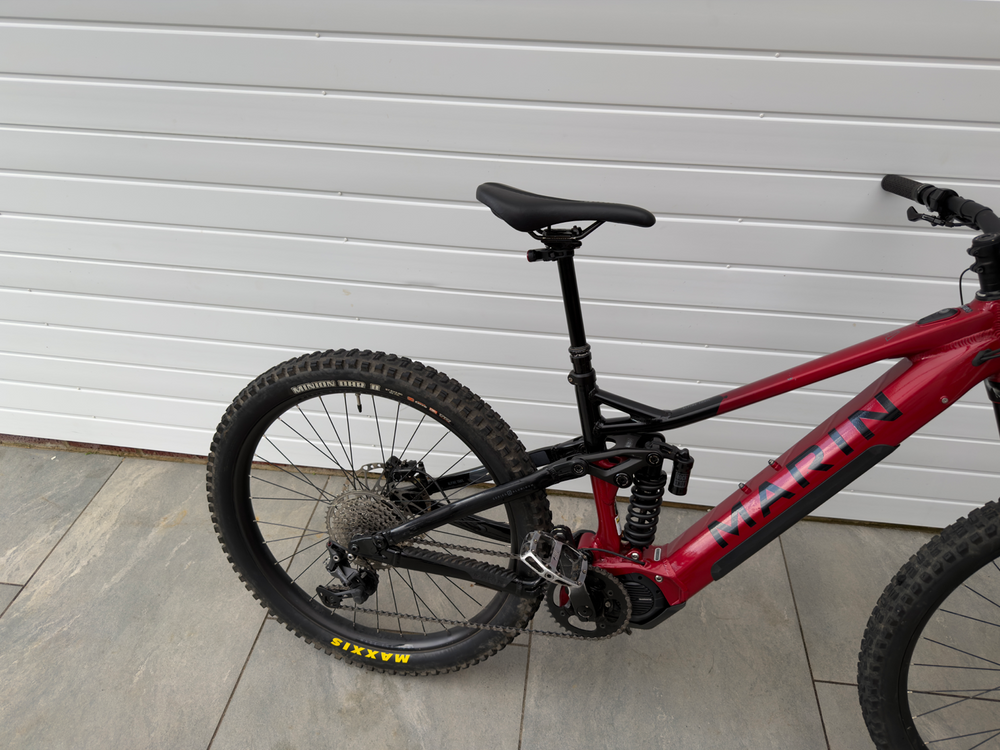

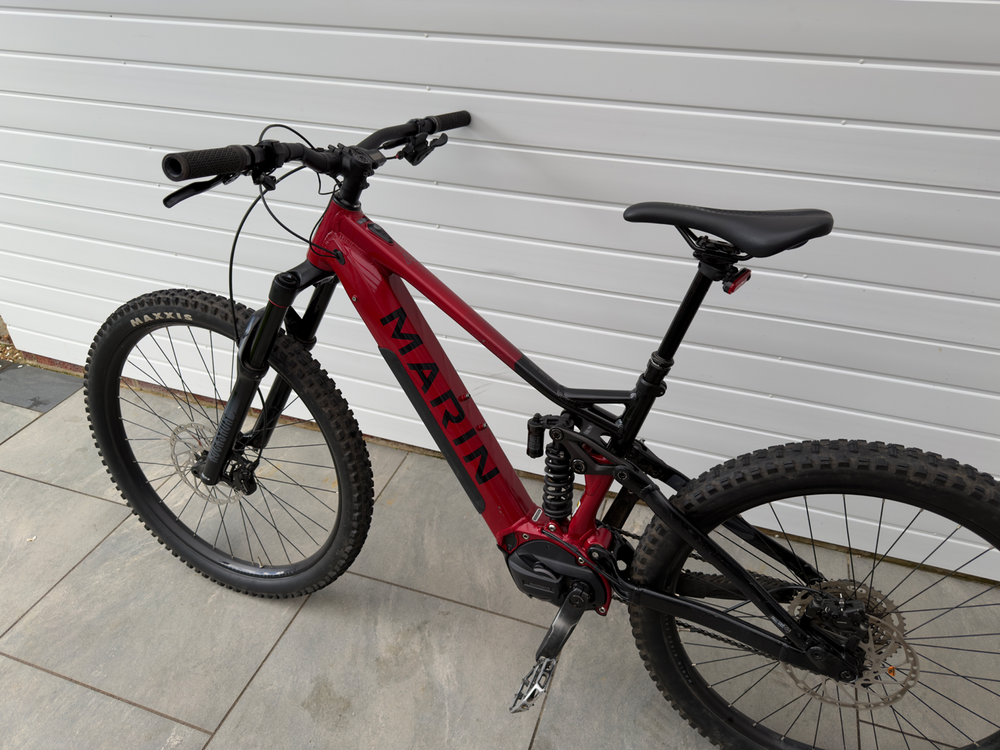

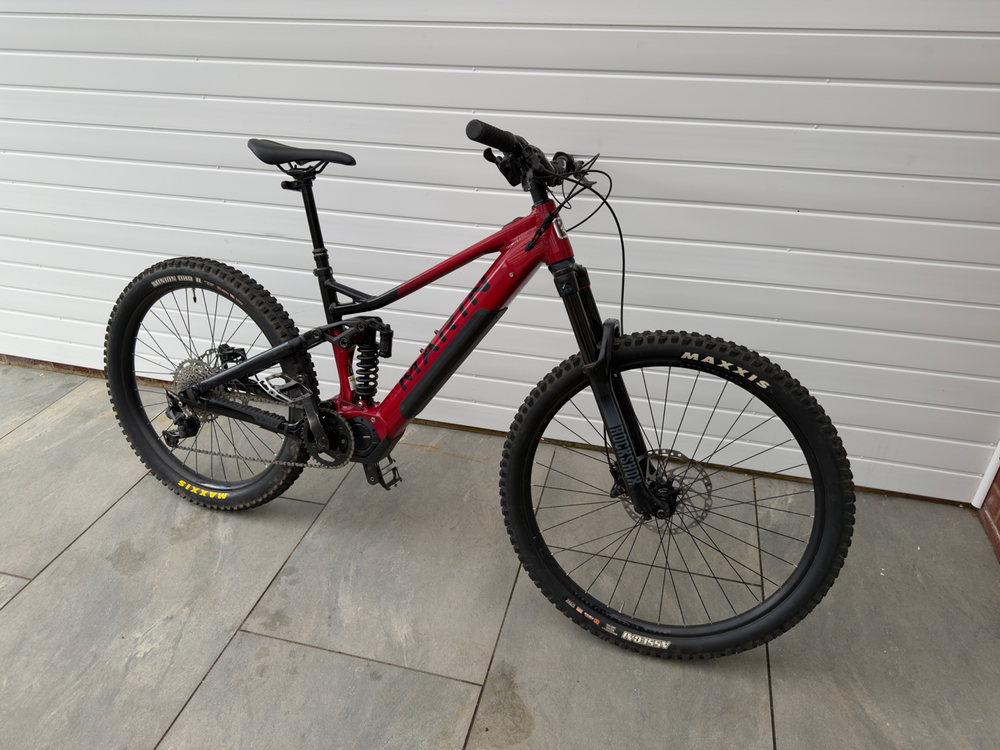

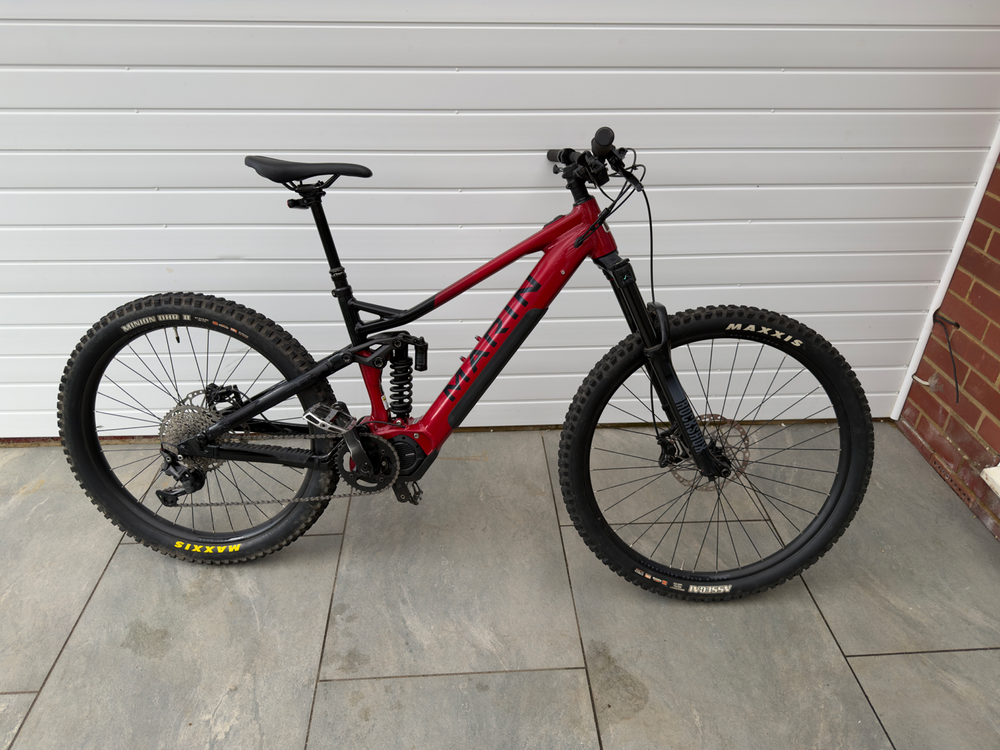

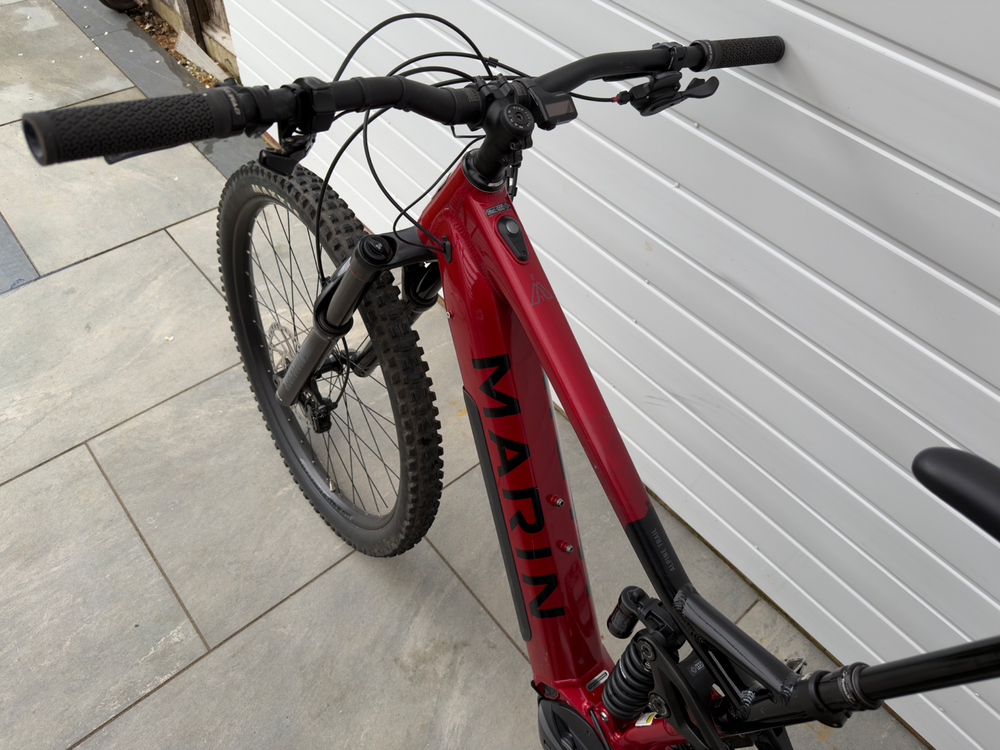

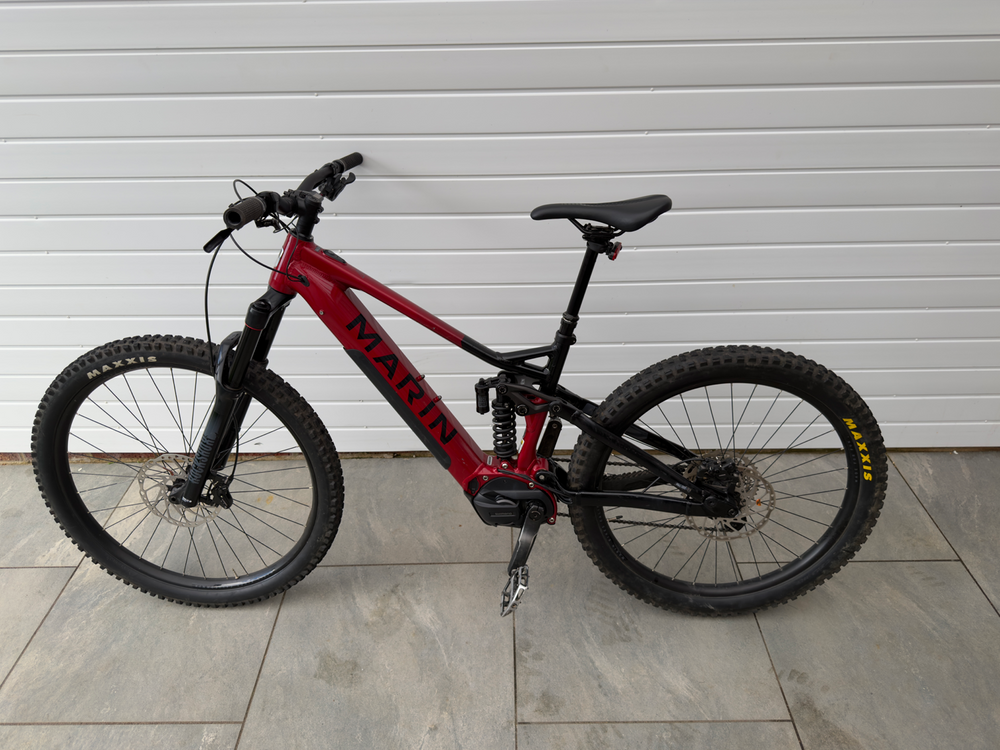

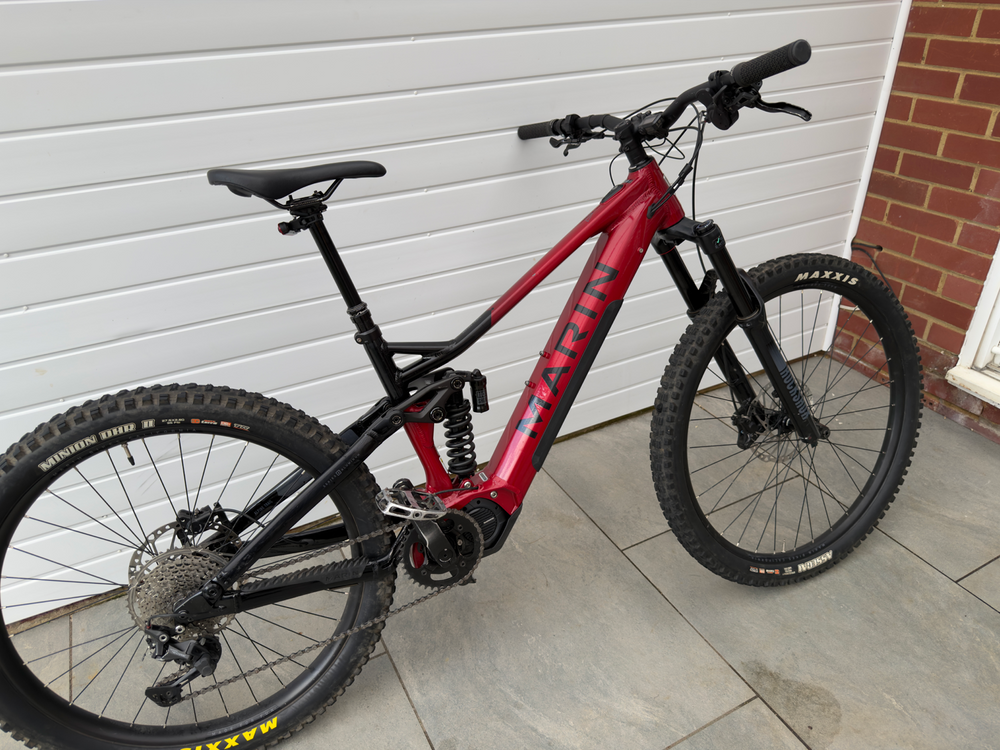

Alpine Trail E1 2022

£1,977.00£3,625.0045% off RRP Good Price
